HV8 HV10 HV12 HV14 Rotary Table Dividing Head Indexing Plates for Milling Machine - Precision Metalworking & Gear Cutting Accessories (Ideal for CNC Machining, DIY Projects & Industrial Manufacturing)
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
64851048
Description
* Ideal for both vertical and horizontal milling machines, like rotary tables in HV-8(8inch), HV-10(10inch), HV-12(12inch), HV-14(14inch), TS200, TS250, TS320, TS400. ** Number of the holes of Dividing Plates A-Plates 26,30,34,38,41,44,47,51,57 ( On one side) A-Plates 28,32,37,39,43,46,49,53,59 (On the other hand) B-Plates 16,67,71,77,81,87,91,97 (On one side) B-Plates 63,69,73,79,83,89,93,99 (On the other hand) *** Package Content: 2 x Plates 1 x Crank Handle 3 x Screw 1 x Sector 1 x U Washer
Features
Set of 2 quality dividing indexing plates for HV8/ 10/ 12/ 14 Rotary tables
The set comprises of 2 plates but actually having different number of holes on each side. This means that a user can use it from both the sides of a plate, basis his required applications. Check out the no. of holes details on each side in the description below.
Diameter of the plate is 7" and its thickness is 0.47 " Inches (12 mm) approx. All required accessories are included as photograph. No manual is included, please note.
Ideal for both vertical and horizontal milling machines, like rotary tables in HV-8(8inch), HV-10(10inch), HV-12(12inch), HV-14(14inch), TS200, TS250, TS320, TS400.

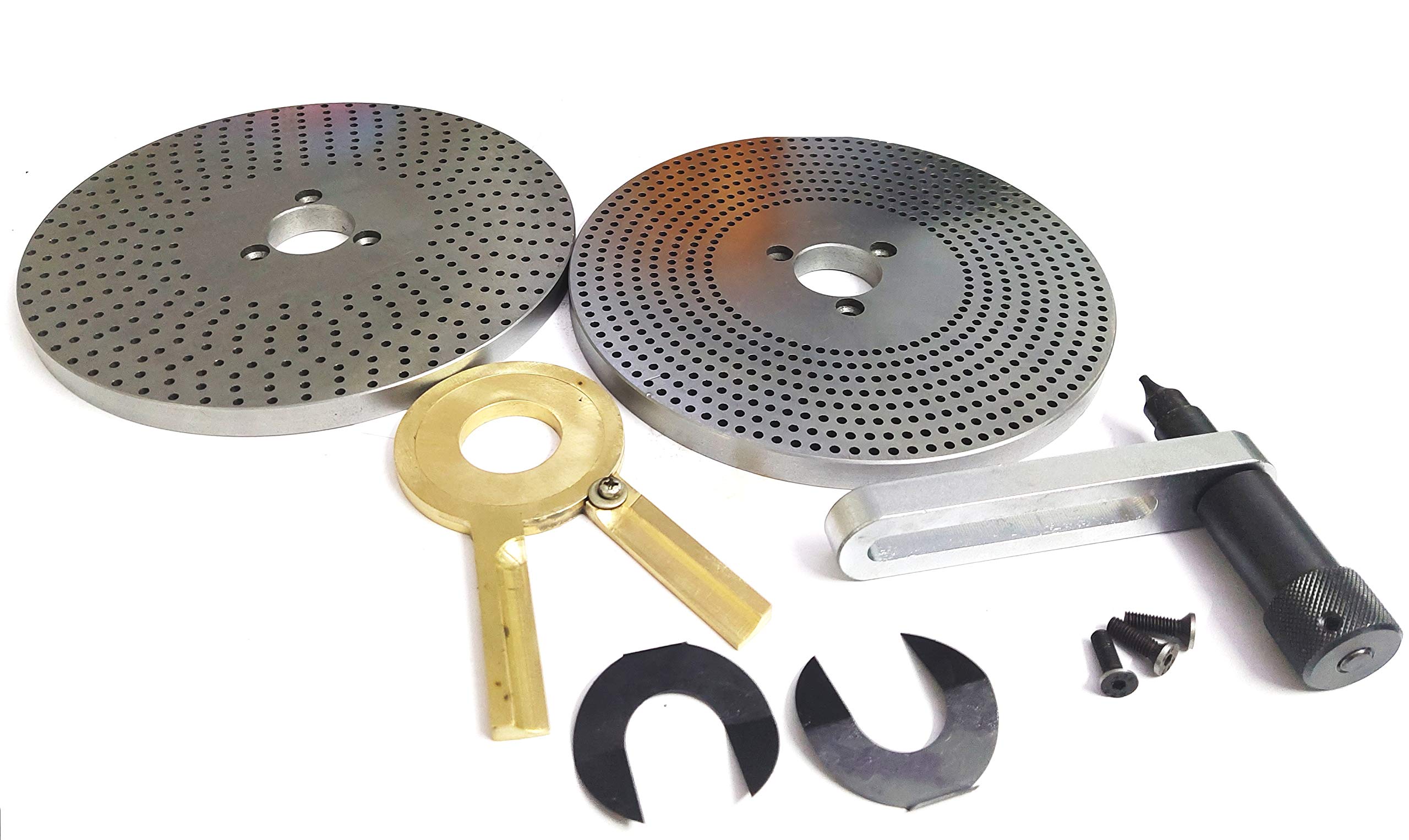

Package Content 2 x Plates 1 x Crank Handle 3 x Screw 1 x Sector 1 x U Washer
